Roof Solar Mounting System
Every square meter of your roof can turn into a power plant with correct engineering. At Magafi, we secure your panels against wind, snow, and time with the carrier systems we design for roof-type Solar Energy Systems (GES). On the Ground, in the Sky, on the Roof; Wherever There is Sun, Magafi is There!
A roof solar mounting system is a metal construction skeleton designed with static calculations that safely fixes solar panels onto the roof surface and protects the structure against wind and snow loads. These systems not only support the panels but also provide a long-lasting, low-maintenance infrastructure compatible with the building's load-carrying capacity based on static calculations.
Choosing the correct carrier system directly affects the 25-30 year economic life of a solar investment. Incorrect construction can lead to risks such as water leakage, corrosion, panel efficiency loss, and in the worst-case scenario, roof collapse.
Mounting Solutions by Roof Types

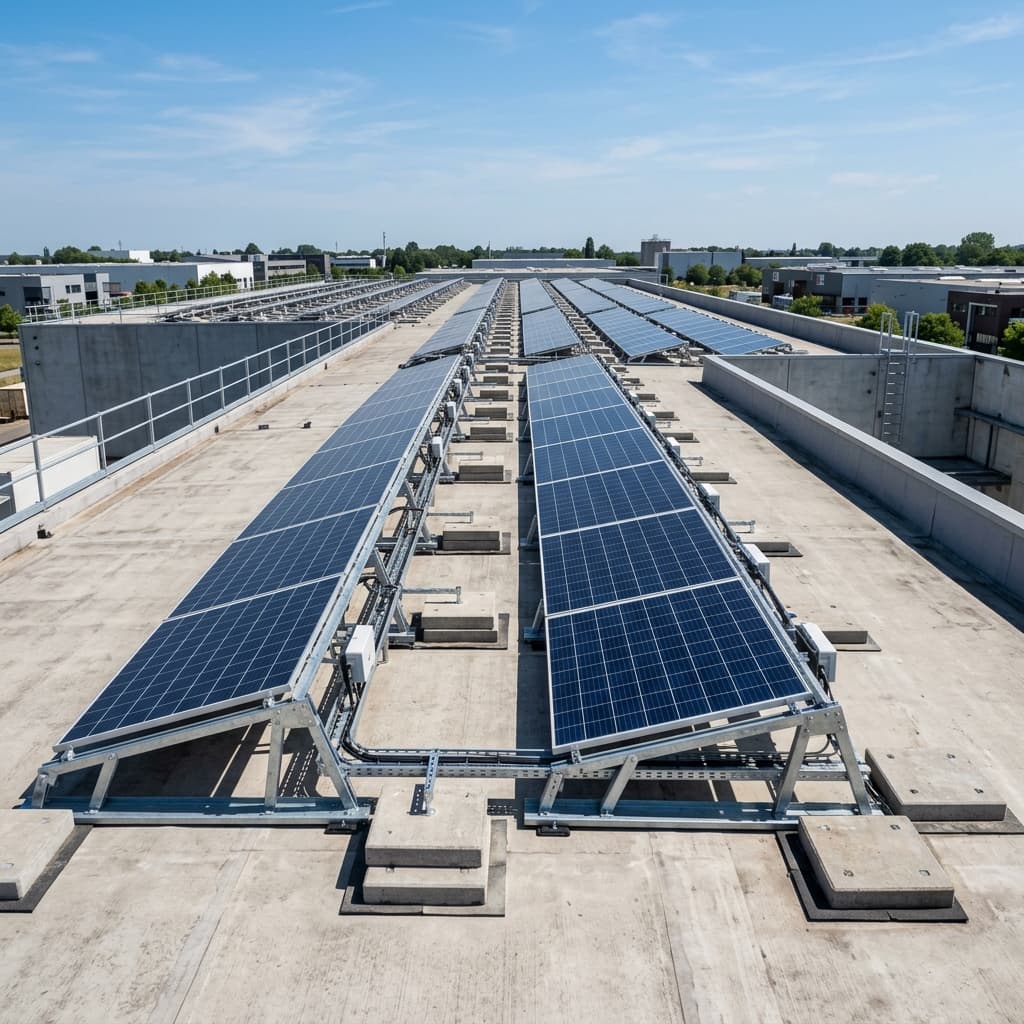

📌 Flat Roof Systems
Angled constructions with triangular legs that provide the ideal tilt angle for panels on concrete or membrane surfaces. They can be installed using ballasts (weight) without drilling the roof, or using special bracket connections.

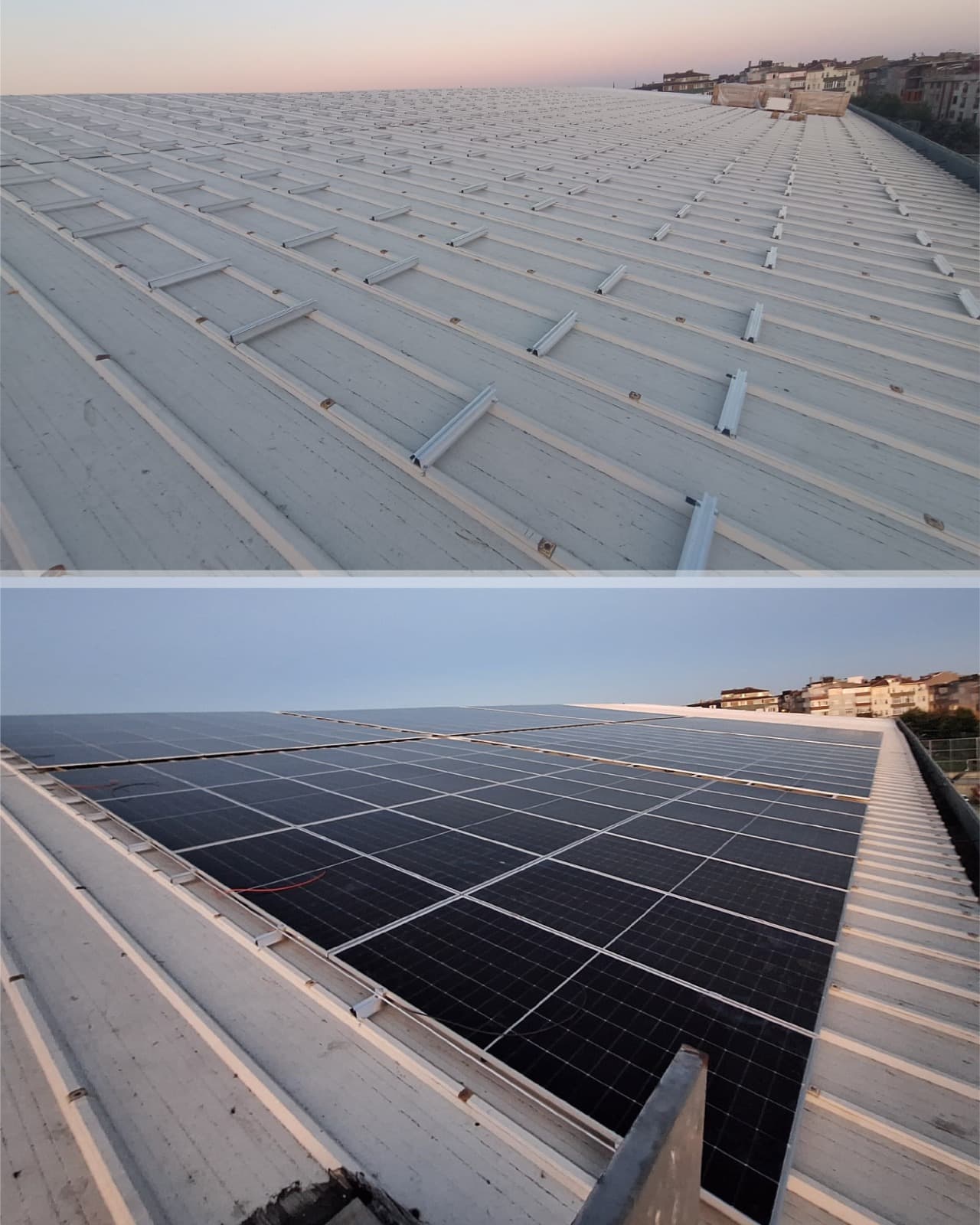

📌 Pitched / Sloped Roof Systems
Rail systems firmly connected to roof purlins with special hooks on tiled or sheet metal roofs. Under-tile and over-tile mounting options are available.

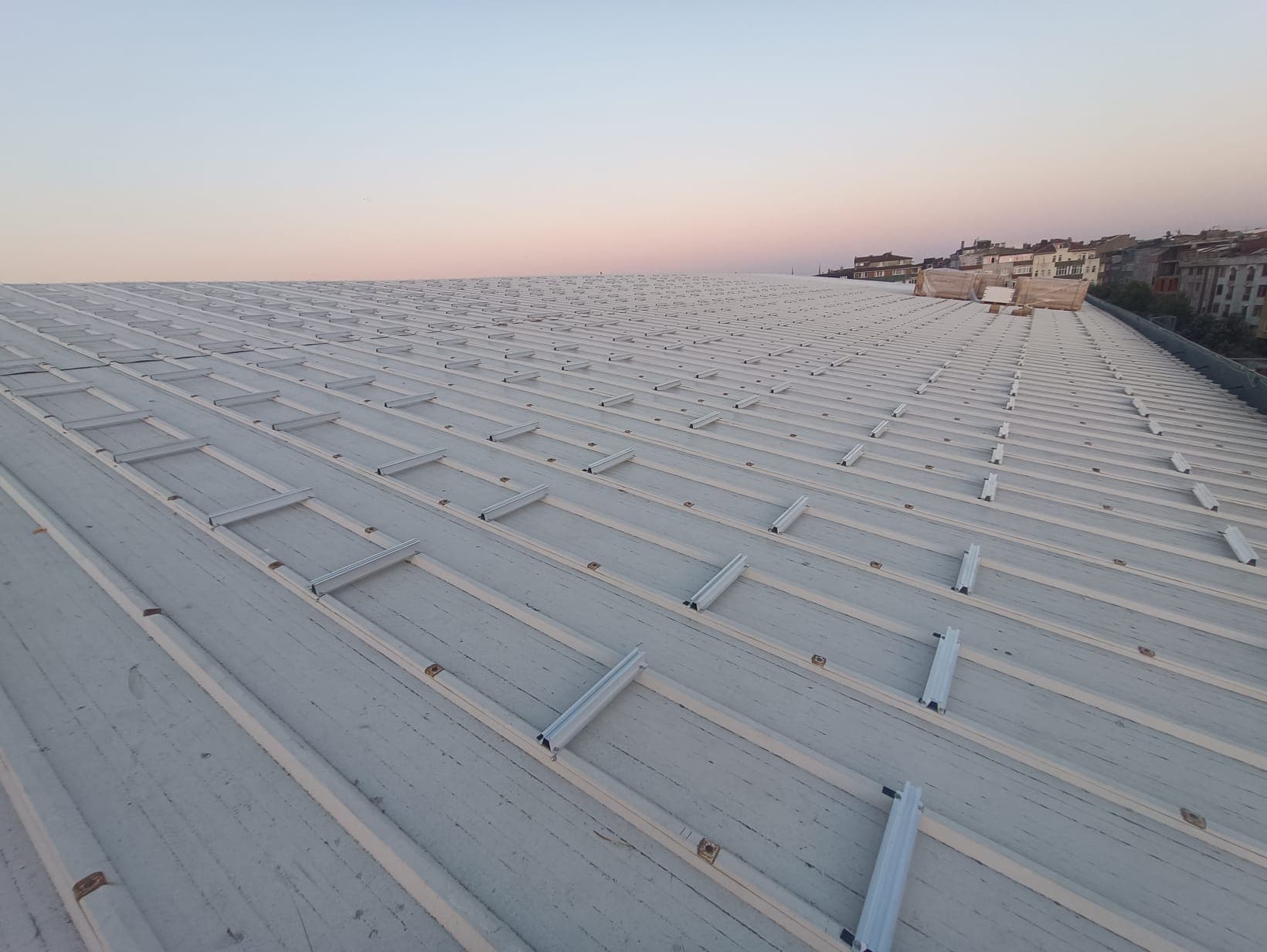

📌 Trapezoidal Sheet and Sandwich Panel Roof Systems
The most common type on industrial facility roofs. Applied using special screw and clamp connection elements suitable for trapezoidal sheet or sandwich panel forms without disrupting waterproof integrity.
Will My Roof Carry the Solar Load? Static Analysis and Safety
This is the most common question asked by businesses deciding on roof solar. Most industrial roofs in Turkey are built to carry a load of 100-120 kg/m²; a standard roof solar system generally brings an additional load of 10-15 kg/m². Nevertheless, for every project:
- 1. Survey and Analysis: Roof survey and review of the existing static project.
- 2. Engineering Calculation: Calculations for wind and snow loads based on regional standards.
- 3. Reinforcement Plan: Proposal of additional reinforcement or alternative construction plan if necessary.
These steps are carried out individually for each project by the Magafi engineering team, powered by our R&D strengths at our factory in Kahramankazan / Ankara.
Technical Specifications of Magafi Roof Solar Mounting Systems
Profile Types Comparison Table
| Profile Type | Typical Field of Application | Highlighted Advantage |
|---|---|---|
| C / C+ Profile | Trapezoidal sheet and sandwich panel roofs | Lightweight, high load-to-weight ratio |
| U Profile | Tiled and sloped roofs | Easy installation, flexible connection points |
| Z Profile | Medium to large industrial roofs | High bending resistance |
| Omega Post | Flat roofs and ground transitions | Extra support and stability |
| Sigma Profile | Large span roof systems | High static performance |
Limitless Energy, Solid Infrastructure: Magafi Trust on the Roof
We Carry Your Projects with 13+ Years of Engineering Quality.
Why Choose Magafi?
- 13+ Years of Engineering and Manufacturing Experience
- High-Capacity Production Line for Rapid Delivery
- Custom Sizes and Designs in C, U, Z, Omega, Sigma Profiles
- EN 1461 Standard Hot-Dip Galvanized Quality Assurance
- Project-Specific Static Consultancy with Our Expert Engineering Team
- Competitive Prices and Uninterrupted Stock Management
- Fast Shipping from Kahramankazan / Ankara Factory to All Markets
How Does the Installation Process Work?
- Survey and Feasibility: The roof type, area, and existing structure are analyzed.
- Static and Engineering Calculations: Wind/snow loads and load carrying capacity are verified.
- Custom Sized Production: Project-specific profiles are produced on our rollforming line.
- Installation: Mounting is done with appropriate connections (hooks, clamps, ballasts).
- Commissioning & Support: Post-installation monitoring and technical support are provided.
Frequently Asked Questions
Let Your Roof Shine, Let Your Energy Align with Magafi.
Get a technical proposal for your roof solar project now.
At Magafi, we provide innovative and reliable solar mounting solutions to ensure you get the maximum yield from solar energy...
